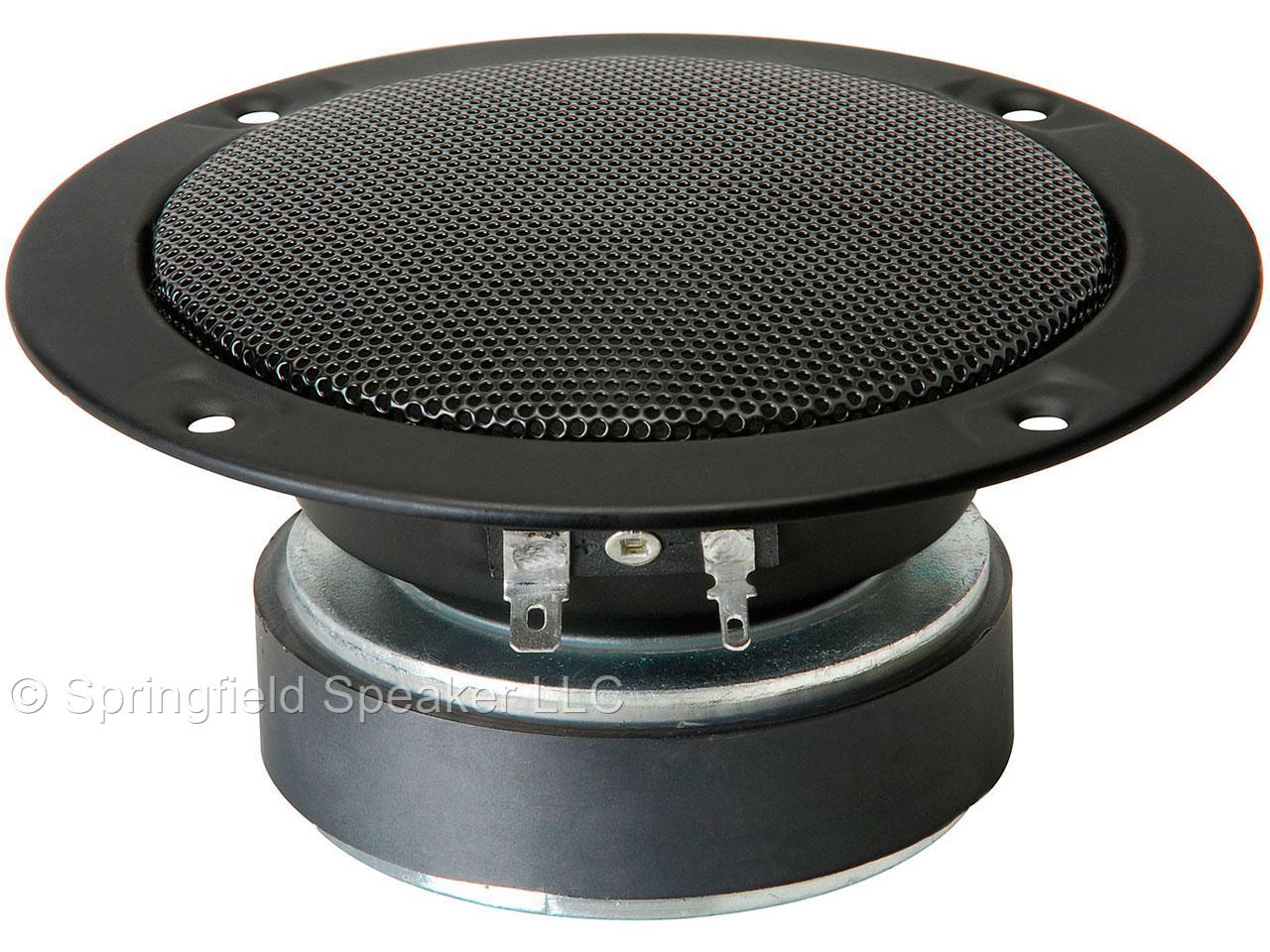

5" Sealed Back Midrange Replacement Speaker for Cerwin Vega AT-12, AT-15, AT M5 and others!

Regular price $29.95 USD
Regular price Sale price $29.95 USD
Sale Sold out

Shipping calculated at checkout.
description



1 Aftermarket Cerwin Vega Replacement Midrange Speaker - 55 Watts, 8 Ohms


A great aftermarket bolt-in replacement for Cerwin Vega AT-12, AT-15, AT M5, and others!
Fully enclosed steel chassis does not require a separate enclosure
Paper cone with paper surround for efficiency and extended range
12 oz. ferrite magnet provides superior motor strength and high power handling capacity
Integral metal screen protects moving parts

PRODUCT SPECIFICATIONS
Power Handling (RMS) 30 Watts
Power Handling (max) 55 Watts
Impedance 8 ohms
Frequency Response 600 to 10,000
Sensitivity 89 dB 1W/1m
Voice Coil Diameter 0.75"


THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) 470 Hz
DC Resistance (Re) 7.6 ohms


MATERIALS OF CONSTRUCTION
Cone Material Paper
Magnet Material Ferrite


MOUNTING INFORMATION
Overall Outside Diameter 5.13"
Baffle Cutout Diameter 4.13"
Depth 2.25"
# Mounting Holes 4


GRS 5SBM-8 5" Sealed Back Midrange
Brand GRS
Model 5SBM-8
