JBL 2412 Horn Diaphragm - 2412H, 2412H-1, JRX, 100, 112, 115, Eon, MPro, Soundfactor

Regular price $19.95 USD
Regular price Sale price $19.95 USD
Sale Sold out

Shipping calculated at checkout.
description

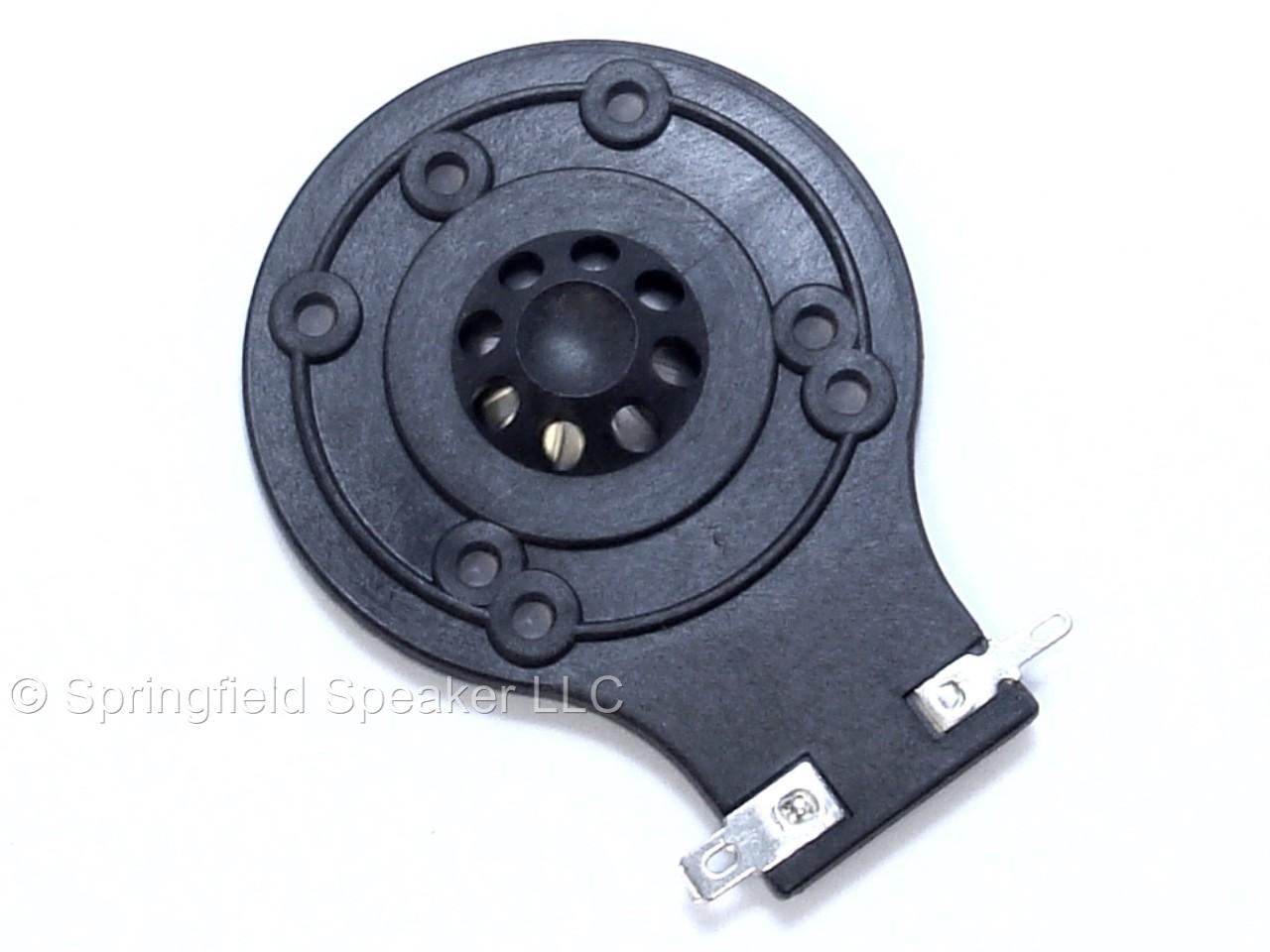

JBL 2412 2412H 2412H-1 Horn Diaphragm

The best-quality aftermarket diaphragms available.

These diaphragms have these JBL-CORRECT features :

.200 Inch negative terminals
.085 Inch gaskets
Titanium dome
4.2 DCR voice coil

The same top-quality components that other top sellers sell, but at a better price!

The perfect aftermarket replacement for the following drivers and cabinet models:

JBL 2412, JBL 2412H, JBL 2412H-1, 2413, 2413H, 125-10000, 339013, 8340A, AC2212/64-WH, AC2212/95-WH, AC2215/64-WH, AC2215/95-WH, C29AV-1/WH, CAB-25, CAB25, CAB 25, CAB-45, CAB45, CAB 45, CONTROL 29AV-WH, CONTROL 321C-CT, CONTROL 328C-CT, EON-10, EON POWER10, EON10-G2, EON-1500, JRX-112M, JRX-112MI, JRX-115, JRX-115I, JRX-125, MP-212, MP-215, MP-225, MP-410, MS105-WH, MS28-WH, SR-12M, SF-12MI, SF-15, SF-15I, SF-25, TR-105, TR-125, TR-126, TR-225, and more.

Diaphragm Specs
------
Model 1JRX
Overall Diameter 2.625" - 68mm
Voice Coil Diameter 1" - 25mm
Overall Length 3.5" - 90mm
Impedance 8 Ohm - 4.2 DCR
