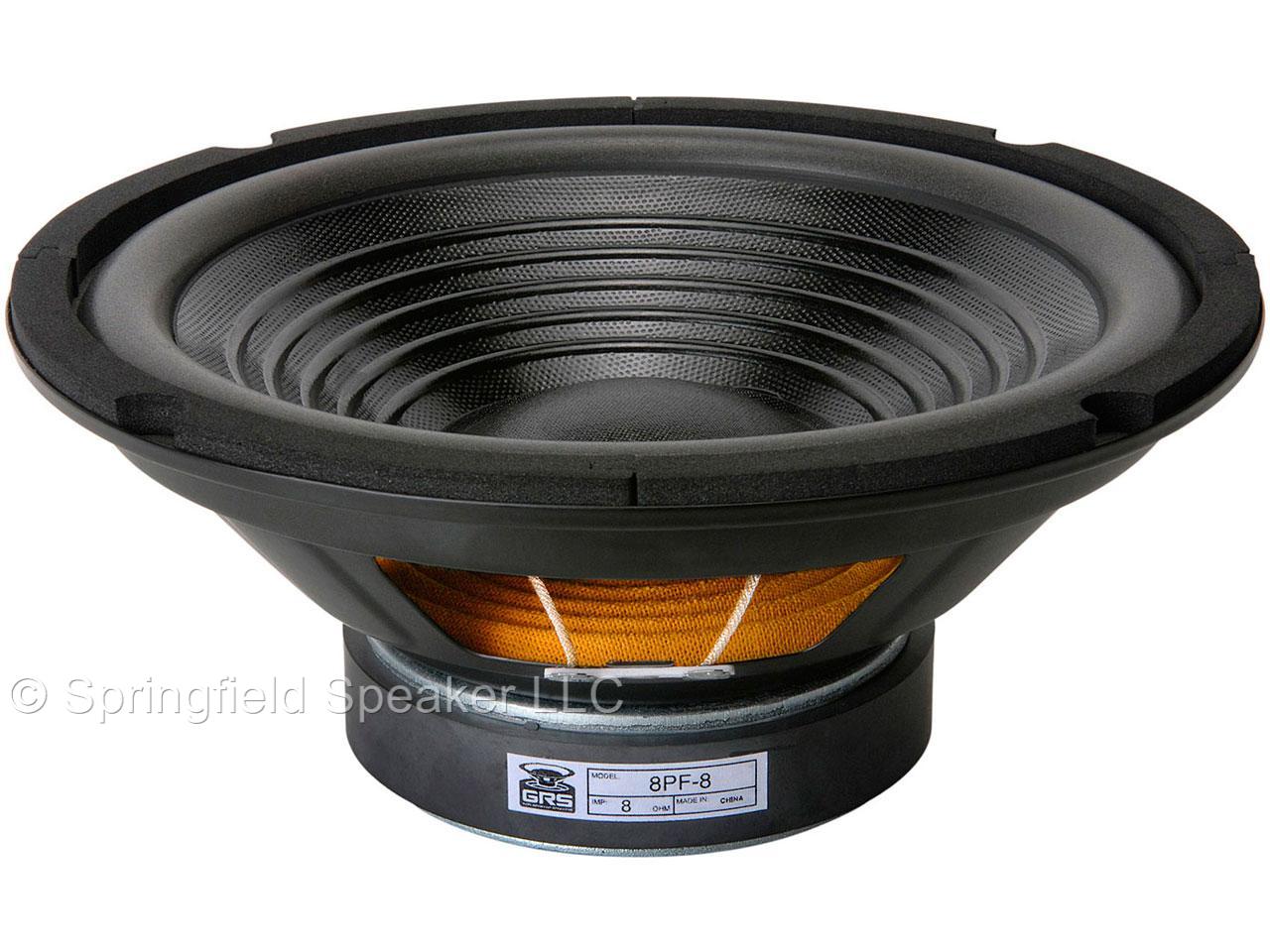

8" Paper Cone Foam Surround Replacement Speaker - Woofer 200 Watts, 8 Ohms

Perfect for use in sealed-box home theater and music systems
Poly-laminated paper cone, treated foam surround, and polymer dust cap
Smooth frequency response with minimal cone breakup

PRODUCT SPECIFICATIONS
Power Handling (RMS) 100 Watts
Power Handling (max) 200 Watts
Impedance 8 ohms
Frequency Response 55 to 6,000
Sensitivity 87 dB 1W/1m
Voice Coil Diameter 1.50"

THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) 51 Hz
DC Resistance (Re) 7.59 ohms
Voice Coil Inductance (Le) 1.11 mH
Mechanical Q (Qms) 4.58
Electromagnetic Q (Qes) 1.17
Total Q (Qts) 0.93
Compliance Equivalent Volume (Vas) 0.95 ft.³
Maximum Linear Excursion (Xmax) 3 mm

MATERIALS OF CONSTRUCTION
Cone Material Paper
Magnet Material Ferrite

MOUNTING INFORMATION
Overall Outside Diameter 8.0"
Baffle Cutout Diameter 7.32"
Depth 3.44"
# Mounting Holes 4

OPTIMUM CABINET SIZE *
Sealed Volume 1.30 ft.³
Sealed F3 54 Hz
Vented Volume 4.91 ft.³
Vented F3 30 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations

GRS 8PF-8 6-1/2" Paper Cone Foam Surround Woofer
Brand GRS
Model 8PF-8
